Motor Hydraulic Orange Peel Grab

Motor Hydraulic Orange Peel Grab
Motor Hydraulic Orange Peel Grab Quality Advantage

Description:

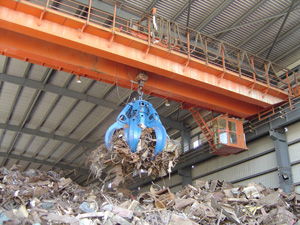

Motor hydraulic orange peel grab can be equipped with the crane with single rope. It is an efficient tool for loading and unloading steel scraps, ore, rocks, etc. as well as for wood chips and household waste. The key components of hydraulic system are of recognized brand imported from Germany. This electric grab comes with six or eight claws, and each claw is driven by an oil cylinder. Besides, it is available with an open, half-open or closed claws, according to the material that it needs to handle. This also ensures a minimal waste of material. The grab has tie-in on the grab and it is easy to connect to the crane.

Advantage:

1. Produced with high tensile materials with excellent low friction cable guides, in short a very robust design
2. Due to its independently movable claws, the electric grab has excellent excavating power.
3. The motor hydraulic orange peel grab is versatile in use thanks to the various types of claws and the option of being able to choose between six or eight claws.
4. The grabbing ability depends on its motor power and scientific design of the grab. According to different materials and the lifting load, the grab can be equipped with motors of different powers.
5. Other advantages of our electric grab include a high level of productivity, long service life and low maintenance for handling bulk materials.
6. Certification: CCS, NK, BV, LS, SGS

Product Outline:

Parameter of Electric Grab:

Type and Size Volume (m3)
Dimensions (mm) Dead Weight (kg) Motor Output (KW) Close Time (s) Operating Pressure (Kg/cm2) Lifting Capacity (t)
A B C D Open Half Close Close 380(V) 50(Hz) 440(V) 60(Hz)
DYD5[0.5] 0.5 1450 2400 2200 1850 1600 1700 1800 11
14 200 5
DYD8[1.0] 1.0 1766 2626 2532 2093 1700 1800 2000 18.5
14 200 8
DYD10[1.5] 1.5 1950 3462 3141 2730 3600 3700 3900 22
16 200 10
DYD10[1.8] 1.8 2030 3786 3321 2824 3600 3800 4000 30
16 200 10
DYD12[2.0] 2.0 2242 3565 3436 3147 4300 4500 4700 37
18 200 12
DYD16[2.5] 2.5 2380 4184 3649 3135 5300 5500 5700 37
18 200 16
DYD20[3.2] 3.2 2500 4280 3760 3200 6000 6200 6400 37
18 200 20
DYD25[4.0] 4.0 2840 4349 3850 3497 6800 7000 7280 45
20 200 25
DYD32[5.0] 5.0 3020 4807 4125 3597 8800 9000 9300 45
20 200 32
DYD32[6.0] 6.0 3150 5100 4200 3680 9400 9600 9800 55
20 200 32
DYD40[8.0] 8.0 3350 5320 4380 3760 10200 10500 10800 55
20 200 32
Note: The parameters listed above are only for your reference, and we can customize as per user’s requirements.

Typical cases for our orange peel grab

1. Shanghai Baosteel Group Corporation (Equipment Department)
2. China Academy of Engineering Physics
3. Shanghai Heavy Duty Machinery Corporation
