Motor Hydraulic Dual Scoop Grab

Description:

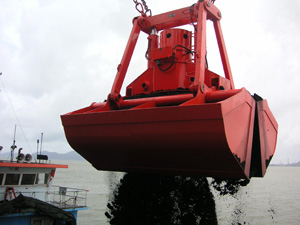

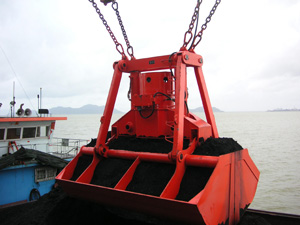

Electro hydraulic grab with dual scoop can be fitted to the overhead crane with one single rope. It is an efficient tool for loading and unloading sands, coal, mineral powder and bulk chemical fertilizer. This motor grab has its own hydraulic system, the key components of which are of recognized brand imported from Germany, which ensure the high performance of the grab. It is simple in structure, easy to operation, and stable in working under severe circumstances. The grab has tie-in on the grab and it is easy to connect to the crane.

Composition:

The motor grab consists of hydraulic system, steel structure and electrical parts. Hydraulic system: motor, hydraulic pump, valve, tank, and etc. steel structure: lifting eye, grab clamshell, etc. electrical parts: cable, electrical control, cable drum.

Application:

Electro hydraulic grabs are widely used in ports, steel plants, power stations, ships and garbage treatment plants, and is used together with tower cranes, ship cranes, ship loaders, traveling cranes and other type of cranes.

Hydraulic clamshell grabs for coal

Coal is considered to be one of the most handled bulk material. We design coal grabs
with very high capacities and low dead weights. For environmentally friendly
unloading the high enclosed model coal motor grabs are the best option.

Grabs for high density materials

Ore, clinker, limestone, etc are high density materials. We can make grabs with a strong design and high enclosing forces to guarantee a good filling and outstanding penetration. Besides, we offer special heavy duty Clamshell grabs for most difficult-to-handle materials. Can handle the following:
Iron ore
Clinker
Bauxite

Enclosed grabs for fine and light materials

We recommend high enclosed Clamshell grabs to handle fine and light materials, such as fertilizer and phosphates. Special knife sealing systems are also available for very fine and free flowing materials.

Special electro hydraulic grab for specific bulk materials

In order to meet a variety of client’s requirements, we offer special solutions to special materials. We are able to optimize the grabs to handle some materials with certain properties that make them difficult to handle by a normal grab.

Features of Motor Grab:

1. High Handling effect: ideal for handling high density materials such as nickel mine. 2. High efficiency: equal work time can handle 20% material more than remote control grab 3. High safety performance: the equipment is able to withstand the forces caused by a fall of any point of the materials. 4. Noiseless and smooth operation 5. Certification: CCS, NK, BV, LS, SGS 6. Import key parts, and stable power supply

Product Outline:

Parameter of Motor Grab:

Type& Size	Volume (m3)	Dimensions (mm)					Dead Weight (kg)	Motor Output (KW)		Close Times	Operating Pressure (Kg/cm2)	Lifting Capacity (t)
		A	B	C	D	E		380(V) 50(Hz)	440(V) 60(Hz)
DYP8[2.5]	2.5	2100	2400	2765	2460	1700	3100	18.5		14	200	8
DYP10[3.0]	3	2240	3020	2975	2600	1700	3300	18.5		14	200	10
DYP12[4.0]	4	2250	2780	2900	2650	2300	3600	22		17	200	12
DYP14[5.0]	5	2520	3150	3190	2850	2325	5400	22		20	200	14
DYP16[6.0]	6	2650	3150	3190	2850	2560	5600	22		20	200	16
DYP20[7.0]	7	2850	3350	3500	3100	2800	6200	37		20	200	20
DYP25[8.0]	8	2950	3400	3600	3300	2940	6800	37		22	200	25
DYP32[10]	10	3100	3700	3800	3400	3200	8500	37		24	200	32
DYP35[12]	12	3200	3900	4000	3600	3500	10500	45		22	200	35

Note: The product can be customized as per client’s need.

Typical Cases:

(1). Greece Maritime Transport Co., Ltd
(2). Mexico International Terminal Limited Company
(3). Columbia Group Limited Company
(4). Singapore Trading Limited Company
