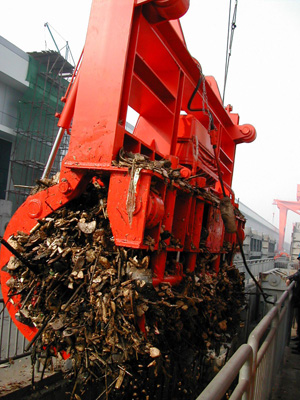

Motor-Hydraulic Rectangle Grab

Description:

Motor-hydraulic rectangle grab is mainly with single hook crane for waterway cleaning up garbage or for steel scrap and also suitable in the special working site, such as reservoir, gate dam, river course, and freight train.
They are available with various models to suit different excavator sizes.
Grab Volume: 2.0 to 7.0m3
Dead Weight: 5000 to 10500kg.
Lifting Capacity: 12 to 32ton
These motor grabs are popular among customers who demand the very best in tackling the toughest job at hand.

Components:

a barrel, bucket valve cylinder, motor, the hydraulic pump station.

Advantage:

1. Equipped with six to eight claws, simple structure and easy operation
2. The grappling ability depends on its motor power and scientific design of the grab. According to different materials and the lifting load, the motor grab can be equipped with motors of different powers.
3. Our hydraulic rectangle grabs are with a high level of productivity, long service life and low maintenance for handling bulk materials.

Motor Grab Outline:

Technical Parameter:

Type and Size	Volume (m3)	Dimensions (mm)					Dead Weight (kg)	Motor Output (KW)		Close Time (s)	Operating Pressure (Kg/cm2)	Lifting Capacity (t)
		A	B	C	D	E		380(V) 50(Hz)	440(V) 60(Hz)
DYJ12[2.0]	2.0	2049	3242	3500	3278	1650	5000	37		15	200	12
DYJ16[2.5]	2.5	2060	3300	3500	3298	1850	6000	37		18	200	16
DYJ20[3.2]	3.2	2500	4280	3760	3200	1850	6500	37		18	200	20
DYJ25[5.0]	5.0	2840	4349	3850	3497	1950	7500	45		20	200	25
DYJ32[5.5]	5.5	3020	4807	4125	3597	1950	8500	45		20	200	32
DYJ32[6.0]	6.0	3150	5100	4200	3680	1950	9600	55		20	200	32
DYJ40[7.0]	7.0	3350	5320	4380	3760	1950	10500	55		20	200	32

Note: We can customize as per client’s requirements.

Typical Cases:

1. Wuhu Railway Locomotive Depot
2. Zhejiang Taizhou Trade Terminal
3. Zhejiang Shipping Group Wenzhou Ocean shipping Co., Ltd.
