Two-Rope Mechanical Dual Scoop Grab

Two-Rope Mechanical Dual Scoop Grab
Two-Rope Mechanical Dual Scoop Grab Quality Advantage

Description:

Two rope mechanical grabs are widely used on ship, port, or mobile cranes, ideal for loading and unloading sand, coal, ore, clinker, fertilizer, and etc. They are with easy maintenance through oiling. The grab buckets are fitted on cranes with two drums, and generally, their safety working loads are no more than 16t.

Advantage:

1. Long life span and low maintenance
2. Proper deadweight distribution
3. Possible to open or close the grab bucket in full speed of lowering without previous stopping
4. Clamshell lips anti-wear and anti-abrasive design
5. Mechanical grabs are built with robust structure in high elastic strength steel
6. CE conformity.

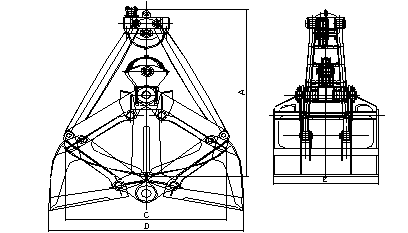

Products Outline of Grab Bucket:



Technical Parameter:

Crane Lifting Capacity t 3 5 6 8 10 12.5
Grab Volume (22.50 Dome) m3 0.5 0.5 0.9 1.2 1.5 1.9 2.3
Deed Weight 4/4-fold t 1.3 1.3 1.9 2.0 3.0 3.8 4.9
Deed Weight 5/5-fold t 1.4 1.4 2.0 2.1 3.2 4.0 5.1
Dimensions A mm 1995 1995 2310 2495 2785 3015 3190
B mm 2305 2305 2740 2955 3285 3575 3770
C mm 1580 1580 1840 1960 2150 2320 2490
D mm 1730 1730 2000 2150 2325 2500 2685
E mm 1040 1040 1200 1290 1390 1500 1600
Standard Diameter of Closing Rope mm 17.5 22 22 24 26 28 32
Dimensions of Suspension mm 360 300 445 445 560 560 620
Note: our products can be customized as per your requirements.
